WAE75000 Auto Wave Voltage and Signal Waveform Viewer
Color LCD Screen Provides clear waveforms for easy viewing
Simple to set up and use. Quickly identify that a signal or voltage is present
Sample rate of up to 1 million samples/sec provides real-time waveform acquisition
Auto-set function sets voltage/time scale for a more detailed view of waveform
Zoom/Pan, capture and save waveforms. Allows for in-depth waveform analysis

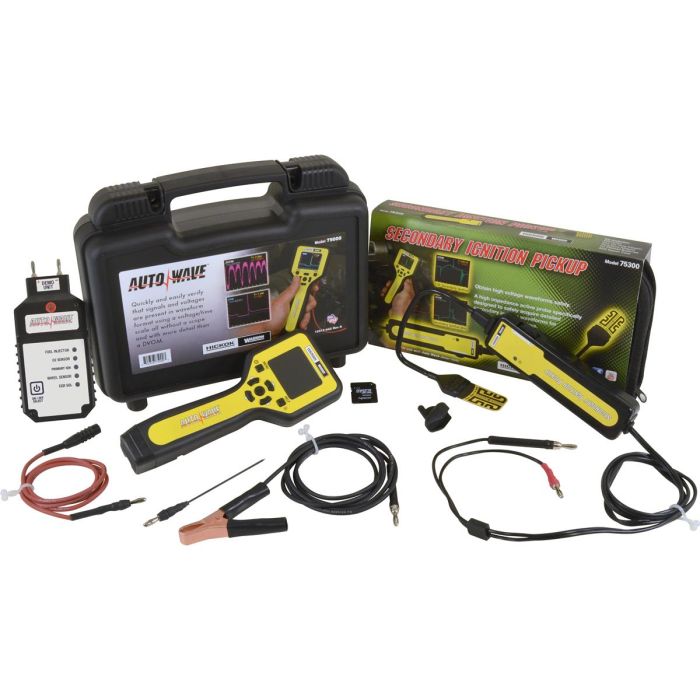

Kit includes: AutoWave, Signal Probe Extender Cable, 4GB SD Card & Adapter, Ground Cable and Storage Case
Scope Out Voltage Without The Scope! Quickly and easily verify signals and voltages are present in waveform format on the multi-color LCD screen. Auto Set and Pan/Zoom functions adjust the voltage and time scales so you can view waveforms in greater detail. Capture and Save waveforms to the 4GB SD card for detailed analysis and viewing on a PC. Auto Wave is a must have for any technician who wants to save diagnostic time accessing detailed waveform data.
WAE75300 Secondary Ignition Pickup Adapter
High impedance active pickup
Provides accurate secondary ignition waveforms
COP and secondary wire adapter
Works on multiple ignition system types
Long flexible probe acceses hard to reach ignition systems
The Secondary Ignition Pickup Adapter is specifically designed to acquire high voltage secondary ignition waveforms for viewing on the 75000 Auto Wave. The SIP adapter has a long flexible probe for those hard to reach ignition systems. Comes with two adapters for use on Secondary Ignition Wires and Coil On Plug ignition systems. Used with Auto Wave, SIP provides a window into what's going on in the combustion chamber.
WAE75011 Auto-Wave Demo Unit
Quick and easy hook up to Auto Wave
One button operation to toggle and select wave form to simulate
Demonstrate auto set, zoom/pan and save features of Auto Wave in seconds
Simulates signals for fuel injectors O2 sensors, primary ignition, wheel speed sensors and EGR solinoids
Operates on a 9V battery
The 75011 Auto Wave Demo Unit is a simple signal simulator designed to aid in the demonstration the 75000 Auto Wave. The unit produces waveform signals for fuel injectors O2 sensors, primary ignition, wheel speed sensors and EGR solenoids.
