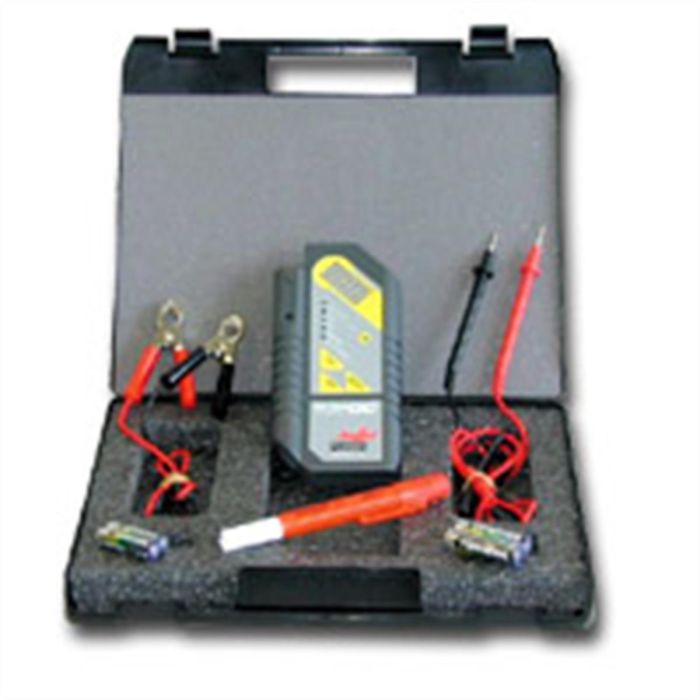

The Volt Check DC is a test instrument that indicates and finds open circuits by tracing powered or nonpowered wires in cars, trucks or other vehicles.
It consists of two units: transmitter & receiver. The transmitter is connected to the vehicle battery and generates a mild signal. The receiver is held against the wire that is being checked and lights up when it picks up the signal from the transmitter if it is connected to the battery on the tested vehicle.
The transmitter can also be connected to wires that are not live. It then generates a signal using built-in power supply.
Volt Check is also a DC voltmeter, 'VAC82-0000
Tester Electrical Volt Check
Features and Benefits:
A real time saver to diagnose electrical problems
Detects components in a powered system connected to vehicle battery
Finds wire and components in a non-powered circuit using the transmitters internal batteries
Locates opens in circuits and measures resistance
Measures DC Voltage, Ohms and is a Continuity Tester
TRANSMITTER
Connect to the vehicle battery or to a system that does not have power
Automatic adjustment for 12 / 24 Volt Systems
Automatic warning system
Different Power Sources available
Signal amplifier
No disconnecting circuit if live. Self powered by two AA (R6) Batteries or through Vehicle Battery
Easy use for any Vehicle
Protects against operator errors
Power by internal AA batteries or with through vehicle battery
Detects cables through upholstery, plastic insulation, carpets etc.
RECEIVER
Pen-like light weight sensor
Notched tip (patent pending)
Available adapter for measurements on larger objects fuses etc.
Fully insulated design
Powerful red light in the forked tip when voltage is detected
Powered by two AAA batteries
Fits snugly on wires, high sensitivity
Trace any covered wires by obstacles like carpets or plastics
