Cuts mild steel, stainless, brass, aluminum and other conductive materials
Lightweight and portable
Powerful and reliable IGBT inverter technology delivers 30 Amp at a 35% duty cycle
Dual voltage-sensing technology (115V or 230V) lets you plug into any common power supply with included adapter
Rated 1/4" (6.4mm) clean cut on mild steel with 1/2" (12.7) rough sever
Low frequency, pilot arc system for instant starts and ease of use when cutting rusty material and will not interfere with other electrical systems including telephone or computer
Self-resetting thermal overload protection with indicator light automatically shuts off to avoid overheating
Adjustable air filter/pressure regulator
Fan cooled
Power supply/phases (v-ph): 115/230v - 1 +/- 15%
Rated input power: (kva): 5.5-230v
Rated output current: 20-30a
Duty cycle at 104 degrees f: 35% at 30a - 230v
Efficiency: 85%
Open circuit voltage: 96v
Cutting capacity: rated 1/4" (6.4mm) clean cut on mild steel with 1/2" (12.7mm) rough sever
Rated: 1/4" (6.4mm)
Sever: 1/2" (12.7mm)
Air supply: clean, dry, oil-free compressed air
Recommended input pressure/flow: 6.0 scfm at 75 psi
Compliant to: can/csa e60974-1

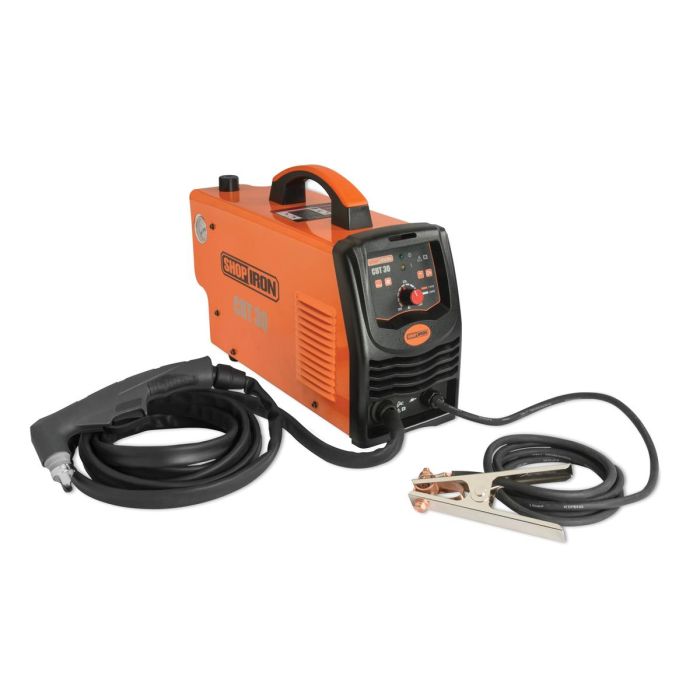

Includes: 12 ft. (3.7 m) trf45 plasma torch (direct connect) 10 ft. ( 3 m) work cable with clamp 115v/230v power adapter consumables: 1 electrode and 1 cutting nozzle
