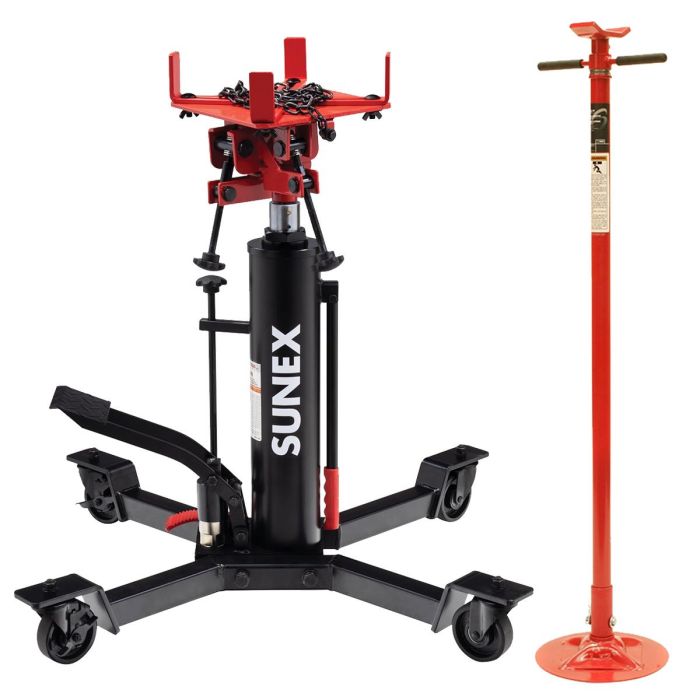

1,000 Lb. Capacity Trans Jack w/ 3/4Ton Stand
SKU
SUN7793B6809-EC
1,000 Lb. Capacity Trans Jack w/ 3/4Ton Stand
Featuresand Benefits:
- 1,000 Lb. Capacity Telescoping Transmission Jack
- Use for removal, installation and transporting of transmissions and transfer cases on vehicles that are supported by lifts
- Foot activated pump pedal for hands free raising of the rams
- Lowered telescopic rams enable the transmission to be transferred from the jack to the work table and extended to reach a maximum height of 74
- Universal saddle with angle brackets that can be adjusted to the transmission pan configuration
Chain tie down secures the load to the saddle. Overloadvalve prevents jack from being used beyond its rated capacity. Low height:35.5"; high height: 79.5"; saddle tilt forward: 53 degrees; saddletilt backward: 30 degrees; saddle tilt side to side: 10-30 degrees; base size:35" x 31.25"; shipping weight: 167 lbs. INCLUDES 6809. 3/4 TonCapacity Underhoist Support Stand. Easy adjustment under load - designed with abearing mounted spin handle and a self-locking ACME threaded screw. 12"Diameter Base - stable and slender design for lightweight, easy handling inclose quarters. Supports vehicle components - ideal for exhaust systeminstallations and shock absorber replacement.
More Information
| Brand | Sunex |
|---|
