Meets All 5 ASME PASE-2019 Safety Standards for Service Jacks
INCLUDES:
22 Ton Under Axle Service Jack
49-1/2" T Handle with position control rod and lever
3 Attachments for adjusting height application
OTC Owners Manual for service jacks with training (operating) instruction
SUPERSEDES P/N'S: OTC1788B
FEATURES:
Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
Chrome plated ram for additional rust resistance
Wiper seals protect hydraulic system from contaminants
3 Position handle makes it easy to position under vehicles with low overhangs
Wide rugged base adds stability and strength
Large rear wheels provide easy positioning and portability
Dependable double spring return lowers piston ram quickly with no load
Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
PRODUCT SPECS:
Capacity | 22-ton
Air Pressure | 90 - 145 PSI
Lifting range | 8.27" to 20-2/3” using longest saddle
Reach | 69.87"
Saddle | 3" dia., round with center notch. Includes 3 saddle lengths: 3/4"; 1-15/16"; 3-7/8"
Max height using �” saddle | 17-3/4”
Max height using 1-15/16” saddle | 18-15/16”
Max height using 3-7/8” saddle | 20-2/3”
Frame height | 8.27"
Handle length | 47.24" T handle with lowering lever and air-chuck hook
Footprint | 22.63" x 11.73"
Wheels | 2 fixed; 7.88" rubberized steel

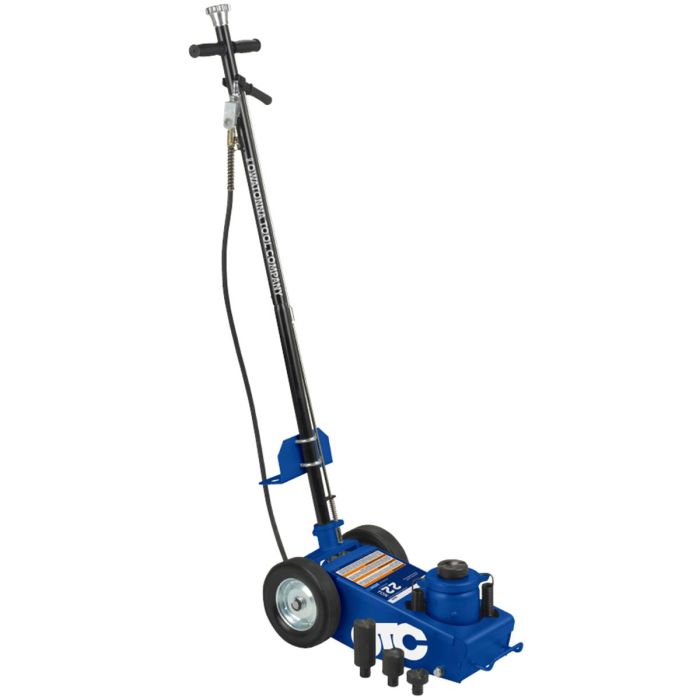

OTC's UA22 22-Ton Under Axle Jack features air-assist operation and a self-retracting, spring return, with a long, 47-1/4 in. T-handle that lets you easily position the jack under vehicles with long overhangs. One pull of the handle activates the self-retracting, 4-1/2 in. stroke, 22-ton capacity ram, without having to crawl underneath the vehicle, while large rubber-tired steel wheels ensure maneuverability and movement on most types of terrain. 3 inch diameter, round saddle, with center notch and 3 saddle attachments - 3/4 in. for 17-3/4 in. lift, 1-15/16 in. for 18-15/16 in. lift, and 3-7/8 in. for 20-2/3 in. lift, allowing height adjustments based on vehicle being lifted. Welded hydraulic pump and cylinder construction provides increased strength and leak prevention. Chrome plated ram offers additional rust resistance. Wiper seals protect hydraulic system from contaminants. Specifications: 22-ton capacity, 4-1/2" cylinder stroke, 4-1/4" extended screw length, 90-145 PSI, 8.27" to 20-2/3" lifting range using longest saddle, 69.87" reach, 8.27" frame height, 11.73" x 22.63" footprint, weighs 100 lbs. Meets all 5 ASME PASE-2019 safety standards for service jacks..
