Load Genie 1/2 Comp.In 3/8 MNPT Out
SKU
MIL1097-8

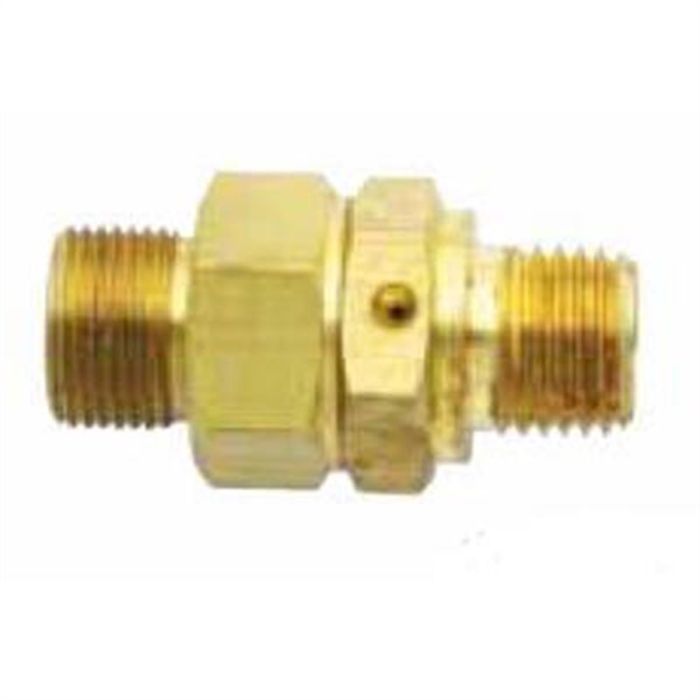

Load Genie 1/2 Comp.In 3/8 MNPT Out
Features and Benefits:
- Efficient, quiet and economical
- Eliminates the need for tubing/fittings of conventional pressure switch unloader
- Maximum working pressure of 250 pounds per square inch
- Range of 3-12 standard cubic feet per minute
- Maximum recommended temperature of 450 degrees Fahrenheit
Load genies are a combination of an un-loader and a check valve. Unloads discharge manifold in either vertical or horizontal position of any compressor when compressor cycles and flow stops. Load genie unloads discharge manifold using 3/8" Male NPT with 1/2" compression inlet. SCFM range 3 to 13.
More Information
| Brand | Milton Industries |
|---|
