Hand Pump Output per Stroke (Ram Cylinder Extended Length Per Stroke) (Inch): 0.157
Hand Pump Oil Capacity (ml): 380
Hand Pump Optimal Force (Lbs.): 179.85-184.30
Hand Pump Piston Stroke (Inch): 0.98
Hand Pump Oil Output Thread: �� NPTF
Hand Pump Weight (Lbs.): 11.46
Kit Extension Lengths: 3�, 5�, 8.5�, 16.5�, 20�
Hose: ��, 5�, Double Braided
ASME / PASE 2019 Safety Standards
Warranty: 1 Year
Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies.
Snap-lock design for quick and easy assembly.
Auto air bleed pump eliminates the need to bleed system prior to use.
Automatic pump overload system protects against damage to rams and equipment.
Heavy walled extensions stand up to the toughest of working applications that are interchangeable with other body and frame kits.
Chrome plated pump core and piston rod for increased durability and long life.
Long handle provides a very low pumping effort.
Double braided hydraulic hose provides protection against abrasion and heavy wear.
1/2-ton capacity hydraulic spreader features 2" jaws and spreads from 5/8" to 3-3/4".
Includes blow molded case for easy transport and storage.
Meets ASME PASE 2019 standards.

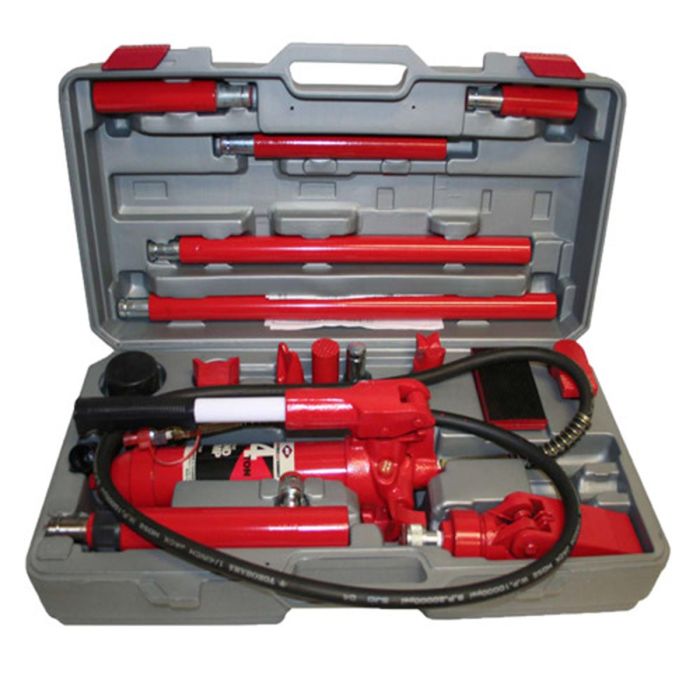

Kit Includes: Hand Pump, Ram, � Ton Hydraulic Spreader, Plastic Blow Mold Case, 3� Extension Tube, 5� Extension Tube, 8.5� Extension Tube, 16.5� Extension Tube, 20� Extension Tube, Ram Toe, Flat Saddle, Wedge Head, V Base, Male Connector, Rubber Saddle, Base, Ram and Hose Coupler Set, Pressure Gauge.
Offering a wide assortment of Hydraulic Rams for use in high force applications including lifting, pulling, pushing, bending and alignment. Choose from complete kits or individual styles.
