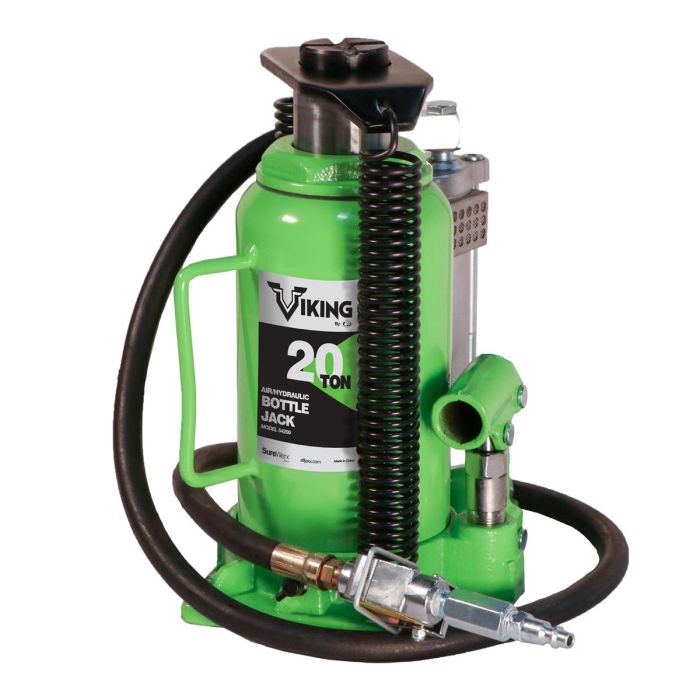

20 ton Air/Hydraulic Bottle Jack
SKU
INT54200
Viking by AFF - Bottle Jack - 20 Ton Capacity - Air/Manual
Features and Benefits:
- Color: Hi-Vis Green/Black
- Product Type: Bottle Jack
- Capacity (T): 20 Ton
- Power Type: Hydraulic
- Operation Type: Air/Manual
- Minimum Height (in.): 10.25"
- Maximum Height (in.): 19.75"
- Ram Lift (in.): 6.35"
- Extension (in.): 3.15"
- Saddle Diameter: 1.8"
- Base Length (in.): 8.86"
- Base Width (in.): 5.72"
- Handle Length (in.): 16.5"
- Number of Handle Pieces: 2
- Oil Reservoir Assembly: Fully Welded - Collar & Base
- Base Type: Drop Forge
- Release Type: Cross Head Valve
- Working Air Pressure: 90-150 PSI
- Duty Level: Viking
- Weight (lb.): 37 Lbs.
- Certification: ASME/PASE 2019
- Heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more.
- Drop forged alloy steel construction for reliable strength.
- Made with centered pumps and rams with heat treated pistons
- Saddles are made of machine hardened steel for unsurpassed strength.
- Built-in bypass system prevents accidental overload and provides added operator safety.
- Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
- Operating pressure at 90-180 PSI
- Aluminum air motor design delivers fast, consistent, and reliable operation.
- Dual cylinder return springs.
- Comes with carrying handle.
American Forge & Foundry�s Safety Stands provide a safe and secure method to hold a load in place while work is being performed under the vehicle. Both ratchet and pin style stands are built with heavy gauge steel and large support saddles. Please note that stands are designed to be used in pairs and the maximum load capacity for a matched pair should not exceed the capacity of an individual stand.
More Information
| Brand | Surewerx USA |
|---|
