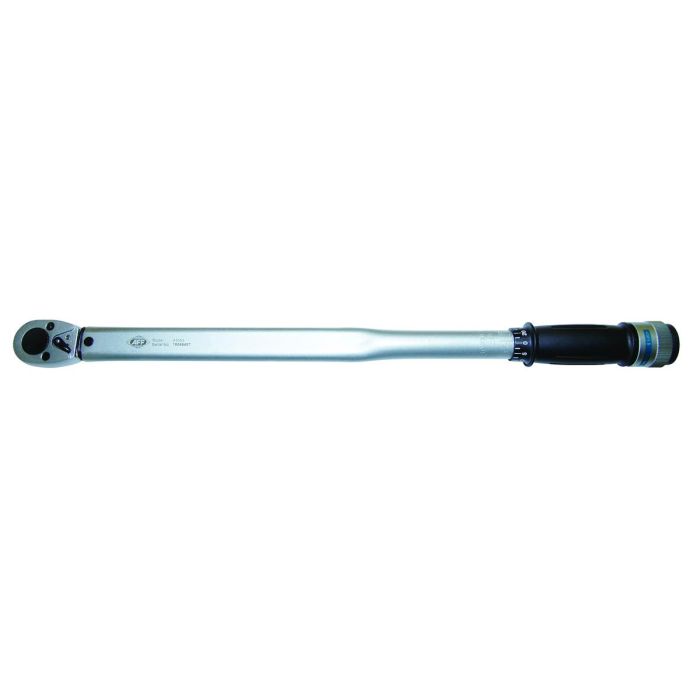

Size & Torque Rating Markings: Stamped and Laser Etched
Tooth Count: 24
Accuracy: +/- 4%
Swing Arc: 15�
Overall Length: 25-1/2"
Head Thickness: 0.76"
Head Width: 1.85"
Grip Style: Ergonomic
Case Type: Plastic Blowmold
Certification: ANSI|ISO|BSEN 26789-1994|U.S. Government Federal Specification GGG-W-00686C
Weight: 5.60 Lbs.
Tested at +/- 4% accuracy and includes Certificate of Calibration.
Conforms to the accuracy requirements of the American Standards Institute ASME B107.14-1194, BSEN 26789:1994, ISO 6789-1992, DIN 3122, and U.S. Government Specification GGG-W-00686C.
Perceptible jolt and audible click indicate desired torque setting has been reached.
Pliable handle grip for superior comfort and oil resistance.
Rubber seal between the ratchet head and tube keeps lubrication in and contaminants out.
Includes protective blow mold case for easy storage.
Our torque tools and accessories are carefully designed and manufactured using superior materials and workmanship to ensure the highest productivity and performance standards. These torque tools are specifically designed for the Automotive, Industrial, and MRO markets.
