Quick Lift Feature: Oversized Pump Piston for More Flow
Working Air Motor Pressure: 115-200 PSI
Release Assembly: U-Joint
Chassis Type: Long Chassis Service Jack
Chassis Length (in.): 56"
Chassis Width (in.): 11.8"
Handle Type: T-Handle
Handle Length (in.): 39.7"
Handle Type (Pcs): 1
Saddle Size: 5.5"
Includes Saddle Pad: No
Saddle Pad Material: N/A
Handle Bump Protector: No
Rear Casters: Qty 2
Front Wheels: Qty 2
Hydraulic Return Spring: Yes
Overload Bypass Valve: Yes
Handle Return Spring: No
Handle Docking Position: 90�
Handle Locking Positions: 90�/45�/180�
Service Parts Available: Yes
Duty Level: Heavy Duty
Weight (lb.): 273 Lbs.
Warranty: 1 Year
Certification: ASME/PASE 2019

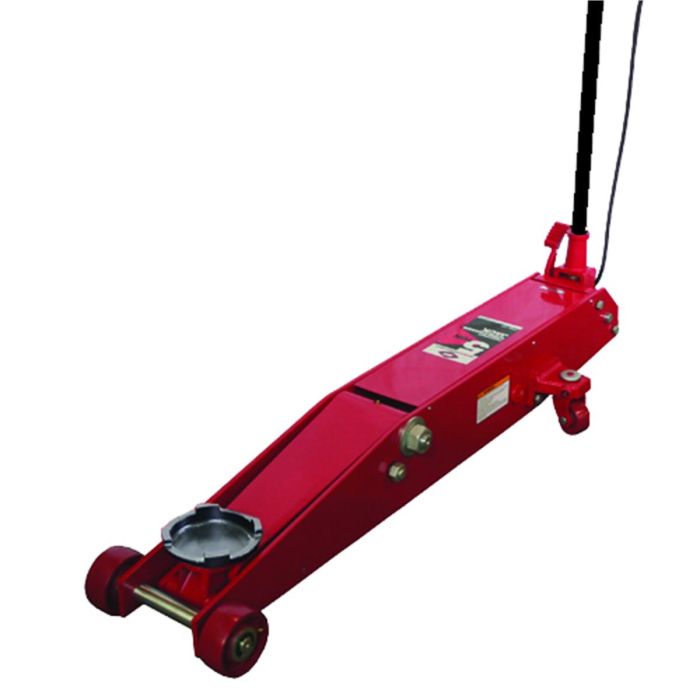

Long 56" body for easier lifting of vehicle with long overhangs.
Foot-operated pump for quick lifting efficiency. Handle-mounted control lever to lock handle in 1 of 3 positions.
Automatic overload safety valves.
Swivel casters for ease of maneuverability in tight shop situations. Large, rugged 4-1/2" front wheels and 2-3/4" rear casters.
Air motor operates at 115-200 PSI, 7.8 cubic feet per minute. Can be operated manually when shop air is not available.
Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
