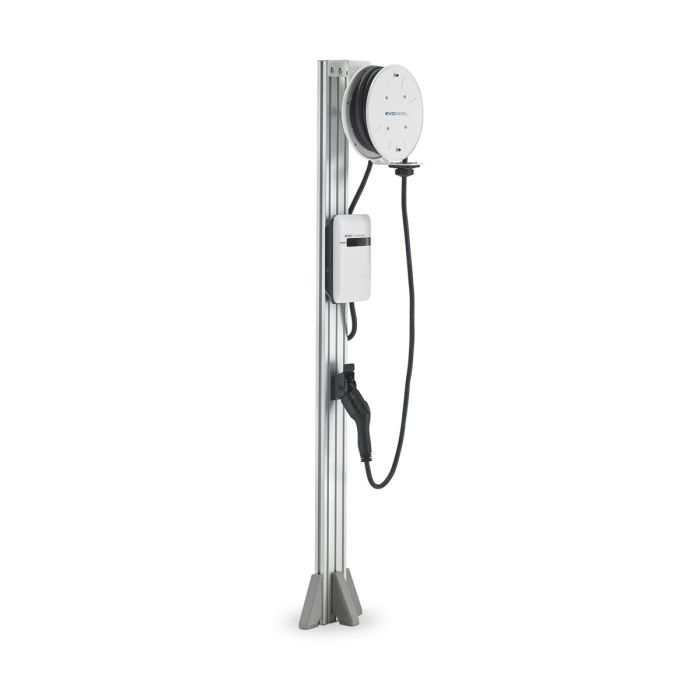

iEVSE WiFi enabled, Single Port Pedestal-mount with 6' pedestal, 22' EVOREEL & 3' interconnect cable
SKU
EVOEVC4AB0C1B1A3
iEVSE WiFi enabled, Single Port Pedestal-mount with 6' pedestal, 22' EVOREEL & 3' interconnect cable
Features and Benefits:•Compatibility - Compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in the United States and Canada, including Tesla (requires adapter)Connector / EVSE LEVSEl - SAE J1772•AC LEVSEl 2Max Output Rating - 30A•7.2 kW Maximum Output – For use with dedicated 40A (or greater) Supply CircuitAlternate Adjustable Output Settings24A•5.76 kW Maximum Output – For use with 30A Circuit Rating16A 3.84 kW Maximum Output – For use with 20A Circuit RatingElectrical Circuit / Input Power Requirements - 208-240VAC, 50/60 Hz., Single Phase•Circuit Requirement: Dedicated•Branch Breaker: Double pole•Circuit Conductors: Line 1, Line 2, Earth GroundInput Power Connection - HardwireOperational Ratings - NEMA 4, Indoor/Outdoor Rated•Temp: -22⁰F to 122⁰F (-30⁰C to 50⁰C)•Humidity: 95% RHMounting: Single charger and EvoReel on a 6ft pedestalCable Management - Standard Connector, Cable Holster, EVOREEL and 6 ft. pedestal Dimensions -EVSE: 11.0 x 7.5 x 3.2 inches (28.0 x 19.0 x 8.1 cm)EVOREEL 13.8 X 12.0 X 9.2 inches (35.1 x 30.1 x 23.4 cm)Pedestal 6 ft. (1.8 m) tallDisplay & Indicators - LED Charge Status Indicators (Power/Ready, Charging, Fault)Standards & Compliance - Charging Station: UL/cUL Listed•SAE J1772, UL 2594, UL 355, CSAThe EvoCharge iEVSE electric vehicle charging station has a modern compact design with robust construction for maximum durability. The EvoReel is self-retracting and locking, has a convenient design for the clean, safe management of the charging cable and comes with a universal mounting bracket for wall, ceiling, or pedestal mounting. The 6 foot pedestal is made of high-strength aluminum suitable for single or dual station mounting with EvoReels.The iEVSE is OCPP 1.6 WiFi enabled to support access control, data collection, and demand response. The station can connect to local utility company and network provider to monitor charging.
More Information
| Brand | EVOCHARGE |
|---|
