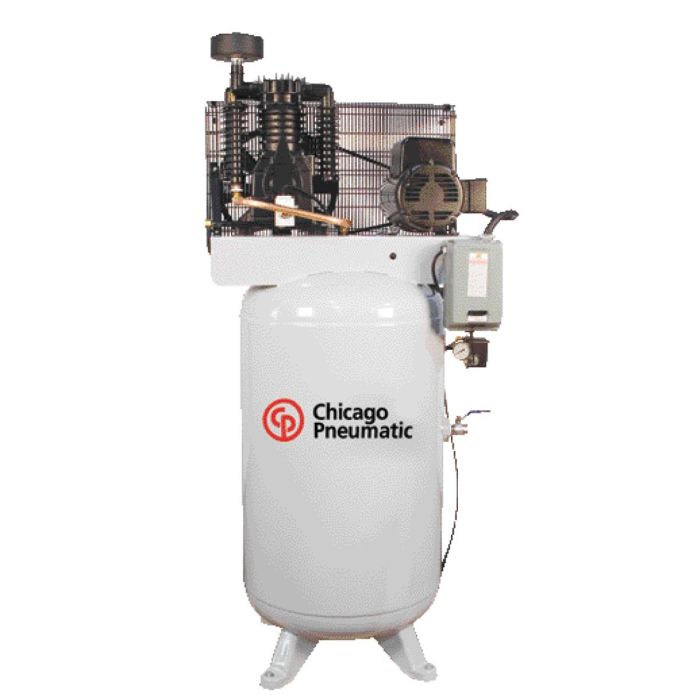

5 HP Single Phase 80 Gal Vertical Tank
SKU
CPTRCP-581V
5 HP Single Phase 80 Gal Vertical Tank
Features and Benefits:
- Solid cast iron 80 gallon vertical tank, with an integrated after cooler
- Start-Stop pressure switch control, air receivers are ASME/CRN certified
- Magnetic starter provides the thermal protection for the electric motors and come with Nema 1 enclosures
- CFM: 18.5, Maximum pressure: 175 PSI
- Safety: Fully enclosed-high flow belt guard, low oil level switch and an automatic tank drain
This RCP series, reciprocating compressor comes with solid cast iron cylinders for strength. The aluminum heads, coolers and crankcases allow for superior heat dissipation. Industrial grade connecting rods have cast splash pins and replaceable automotive style insert bearings. The cast iron crankshaft along with balanced pistons and over sized main bearings guarantees smooth operation. This style of compressor utilizes high efficient stainless steel reed or ring valves on all models. Oil level and oil drain are clearly visible and easy to access. This compressor has a full 2 year warranty.
More Information
| Brand | Chicago Pneumatic |
|---|
